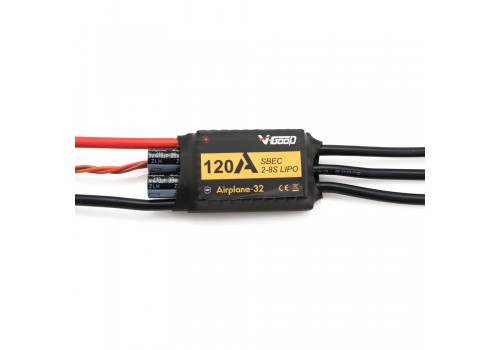

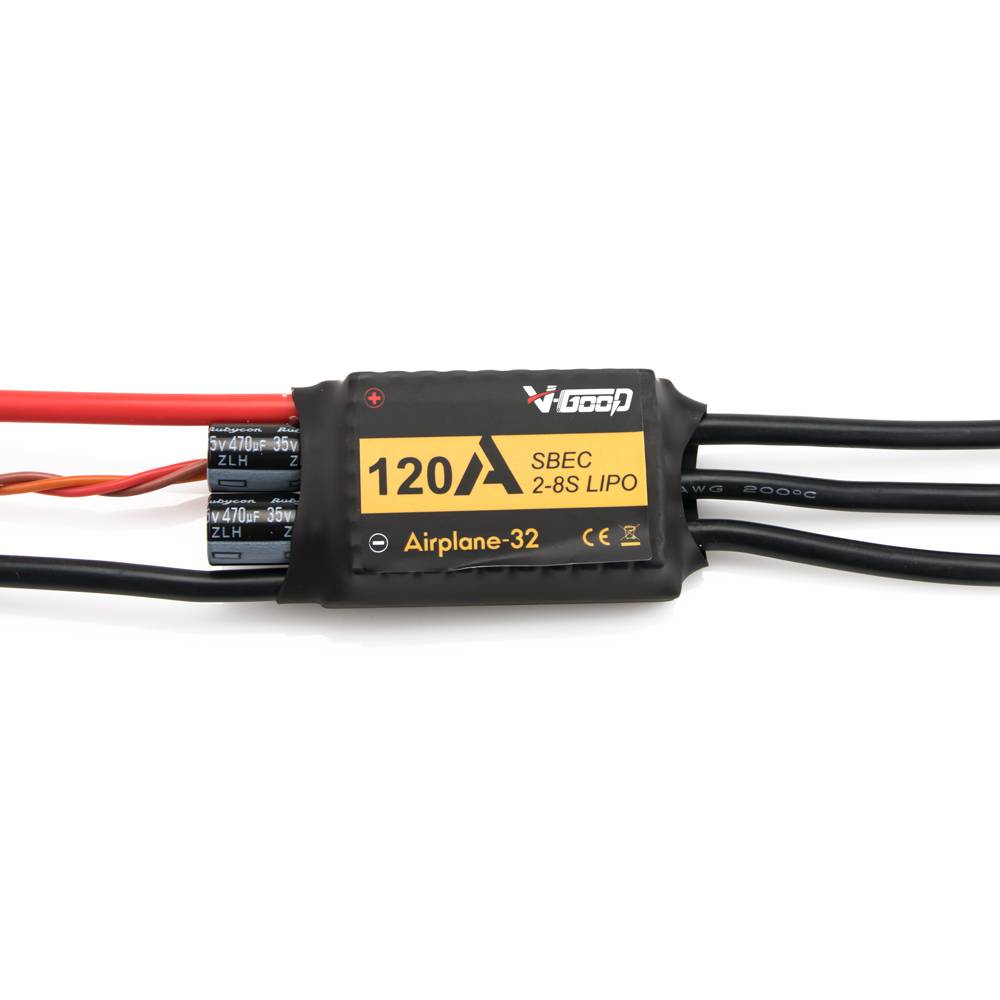

VGOOD ESC 120A 2-8S BEC 5.5v 5A

The V-Good RC 32-Bit 120A 2-8S Brushless ESC if the perfect ESC for your RC Airplane. This ESC features 32-Bit MCU for fast speed and fast response!

Specifications

• PCB model：DHGD-POWERBEC2-8A
• A32120A8SSB
• Con.Current:120A
• Peak Current(10s):140A
• BEC:YES
• Lipo:2-8s
• Programming :YES
• BEC Output：5.5V/8A
• PWM:8-18KHz
• Weight:80.2g (w/wire)
• Size(PCB):50.2*31.1mm

Operation

• 1. Throttle Calibration
• Please set throttle when the first time to use the ESC
• Step: 1-Startup controller and push stick at the highest throttle position.
• Step: 2-Power on ESC, motor beeps " means high throttle set ok
• Step: 3-Push stick to the lowest position, motor beeps I"means the low
• throttle is detected. then another " d"as confirmation that throttle is
• set ok and ready, you can push stick to go
• Connect ESC as connection diagram, power on ESC, ESC will detect battery
• cells and motor beeps. For example 4 cells batter, beeps will be: N
• Then 2 beeps"." means ESC is ready.
