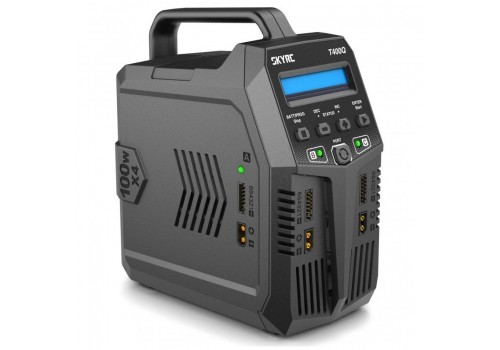

SkyRC T400Q AC/ DC Quattro Cargador

Specifications

Size and Weight

Case Material: PC-ABS V0

Case Size: 116*110*79mm

Weight: 470g

Display

Display Type: TN

Size: 2.8 inch

Panel Active Area: 43.20*57.60mm

Resolution: 240x320 Pixel

Number of Colors: 262K

Power

DC Input Voltage: 10-30V

AC Input Voltage : 100-240V

Charger power:

AC: 100W MAX

DC: 200W MAX

Discharge power:

Main port: 5W

Balance port: 25W MAX (LiPo/6S)

20W USB-C Power Delivery:

QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A 18W

PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A 20W

Battery

Battery Types/Cells:

LiPo/LiHV/LiFe/LiIon: 1-6cells

NiMH/NiCd: 1-15cells

Pb: 3S/6S/12S

Charge and Discharge

Charge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.2-10.0A

Discharge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A

Balance current

LiPo/LiFe/LiIon/LiHV：1.0A MAX

Operation

LiPo/LiFe/LiIon/LiHV: Balance CHG, Charge, Storage, Discharge

NiMH/NiCd: Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Discharge

Pb: Normal, AGM Charge, Cold Charge, Discharge
