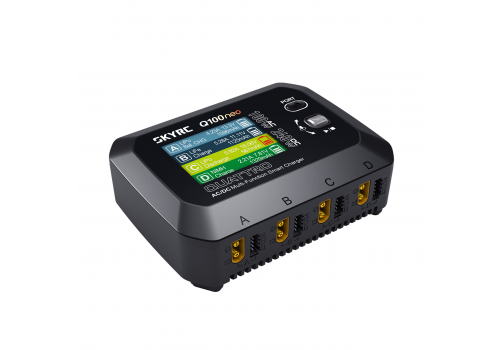

Cargador SkyRC Q100 Neo 1-4S AC/DC 4 Puertos

VER MAS INFORMACION DEL PRODUCTO

Specifications

Size and Weight

Case Size: 140x108x43.5mm

Weight: 491g

Display

Display Type: TN

Size: 2.8 inch

Panel Active Area: 43.20*57.60mm

Resolution: 240x320 Pixel

Number of Colors: 262K

Power

AC Input: 100V ~ 240V（50Hz/60Hz）

DC Input: 10V~30V

Charge Power:

AC Input: 100W(±10%)

1 port: Max. 60W

2 ports: 50W + 50W

3 ports: 33W + 33W + 33W (Total power divided by 3)

4 ports: 25W × 4

DC Input: 240w(±10%) 60W *4

Discharge Power:

Main port: 5W

Balance port: Max. 10W（LiPo/4S）

Charge and Discharge

Charge Current: 0.1A~0.5A（±0.1A） 0.6A~6.0A（±10%）

Balance Current: Max. 600mA

Working Mode:

LiPo/LiFe/Li-ion/LiHV: Balance CHG, Charge, Discharge, Storage

NiMH/NiCd: Normal, Discharge, Repeak, CYCLE_D_C, CYCLE_C_D

Pb: Normal, AGM Charge, Cold Charge, Discharge

Battery Types/Cells:

LiPo/LiHV/LiFe/LiIon: 1-4S

NiMH/NiCd: 1-8S

Pb: 3S/6S

Working and Storage

Operating temperature: 0℃-40℃

Working humidity: 5% ~ 75% RH (Non-condensing)

Storage temperature: -10℃ ~ 70℃

Storage humidity: 5% ~ 75% RH (Non-condensing)
