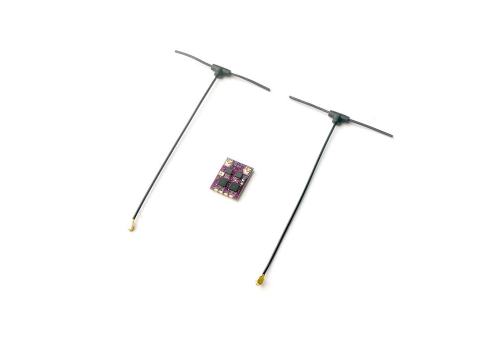

Happymodel 2.4G ELRS EP1 Dual TCXO RX True Diversity Receiver Module

Specifications:

• Type: ISM2.4GHz

• ESP32 PICO D4, dual SX1280(SX1281)

• Antenna connector: IPEX MHF 1/U.FL

• RF Frequency: 2.4GHz (2400~2480MHz)

• Telemetry power: >19dbm

• Receiver protocol: CRSF

• Input voltage: +5V DC @ “+” pad

• PCB size: 19mm x 14mm

• Weight: 1gram exclude antenna

• Built-in a TCXO (temperature compensated crystal oscillator)

Firmware:

• Default Firmware out of factory: Unified_ESP32_2400_RX  Could upgrade to HappyModel EP1 Dual 2400 RX 3.0FW
• Firmware update via UART or WIFI

Package Includes:

• 1 x Happymodel 2.4G ExpressLRS EP1 Dual TCXO RX True Diversity Receiver Module
