Features:
(1) High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.
(2) High-speed data transmission, supports F1000Hz and F500Hz ultra-high refresh rates, meeting the low-latency requirements of racing players.
(3) Onboard temperature-compensated crystal oscillator (TCXO), rejects the impact of ambient temperature on flight, maintains stable operation in high or cold environments, making flight safer.
(4) Integrated with a high-power PA+LNA low-noise amplifier and 100mW (20dBm) telemetry return, returning the flight data is more stable.
(5) Supports SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.
Specifications:

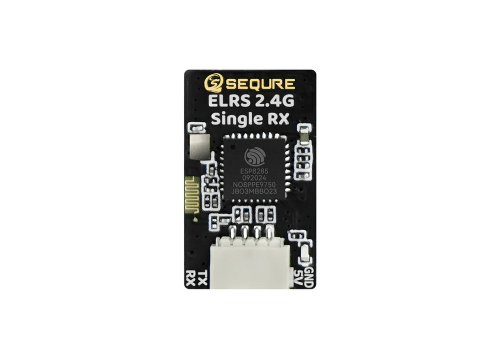

Model: SEQURE ELRS 2.4GHz Single RX
Factory Firmware: SEQURE 2.4GHz Single RX_3.4.0
MCU: ESP8285
RF Chip: SX1281
Crystal Oscillator Type: Temperature Compensated Crystal Oscillator（TCXO）
PA Power (Telemetry Power): 100mW（20dBm）
LNA: YES
Indicator Light: LED
Frequency Band: 2.4GHz ISM
Protocol: CRSF
RF Mode: Single Antenna
Antenna Interface: Ipex1
Receiver Interface: SH1.0-4P Connector, 2.54-4P Pad
Working voltage: 5V
Weight: 0.7g
Size: 18*10.8*5mm
Package Includes:
1 x SEQURE ELRS 2.4GHz Single RX
1 x 2.4G Antenna 80mm
1 x 30AWG 100mm Single-end SH1.0-4P Cable
2 x 12*30mm Heat Shrink Tube
