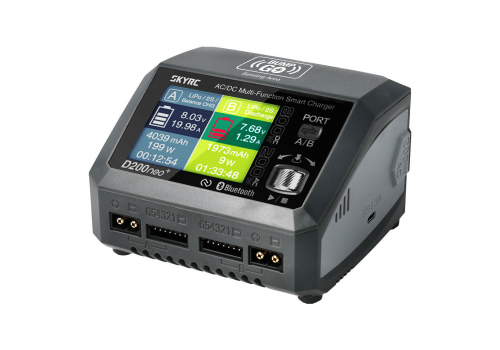

Cargador SkyRC SkyRC D200 Neo AC/DC Dual PS 200W

Specifications

Size and Weight

Case Material: Plastic

Case Size: 116*110*79mm

Weight: 602g

Display

Display Type: TN

Size: 2.8 inch

Panel Active Area: 43.20*57.60mm

Resolution: 240x320 Pixel

Number of Colors: 262K

Power

DC Input Voltage: 10-30V

AC Input Voltage : 100-240V

Charger power:

AC: 100W MAX * 2

DC: 400W MAX * 2

Discharge power:

Main port: 10W

Balance port: 37W MAX

External discharge: 350W MAX

20W USB-C Power Delivery:

QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A 18W

PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A 20W

Battery

Battery Types/Cells:

LiPo/LiHV/LiFe/LiIon: 1-6cells

NiMH/NiCd: 4-15cells

Pb: 3S/6S/12S

Charge and Discharge

Charge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A

Parallel：20.0-35.0A

Discharge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A

External discharge：0.1-40.0A

2

Balance current

LiPo/LiFe/LiIon/LiHV：1.5A MAX

Operation

LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel

NiMH/NiCd: Charge, Cycle, Re-peak, Discharge

Pb: Normal, AGM Charge, Cold Charge, Discharge
