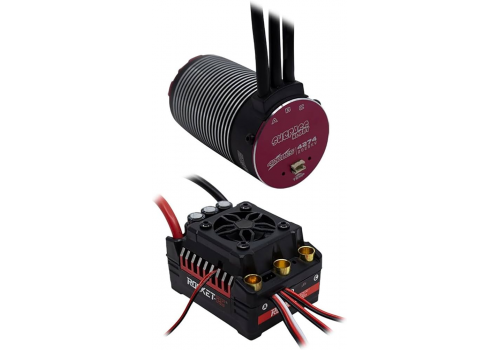

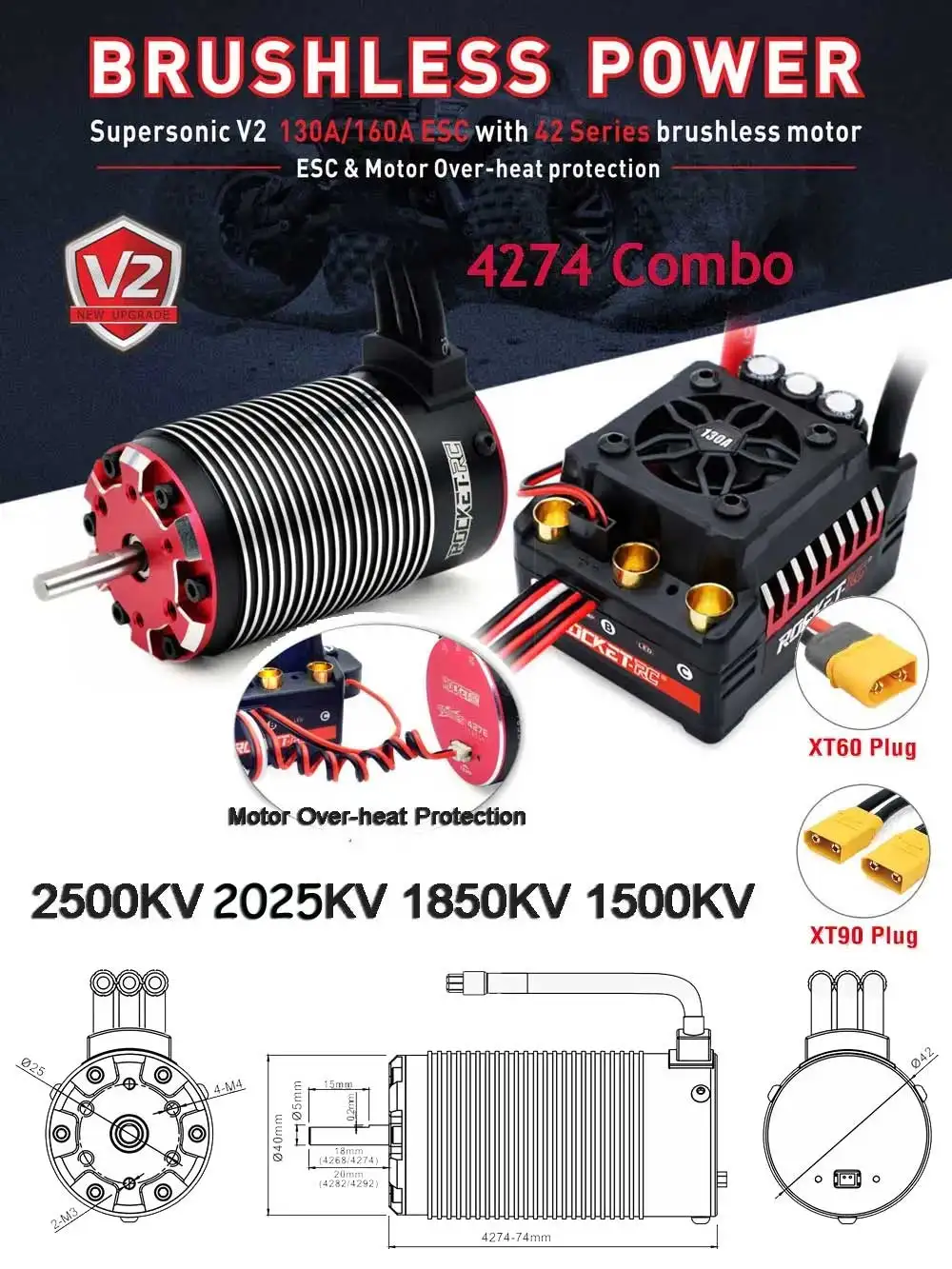

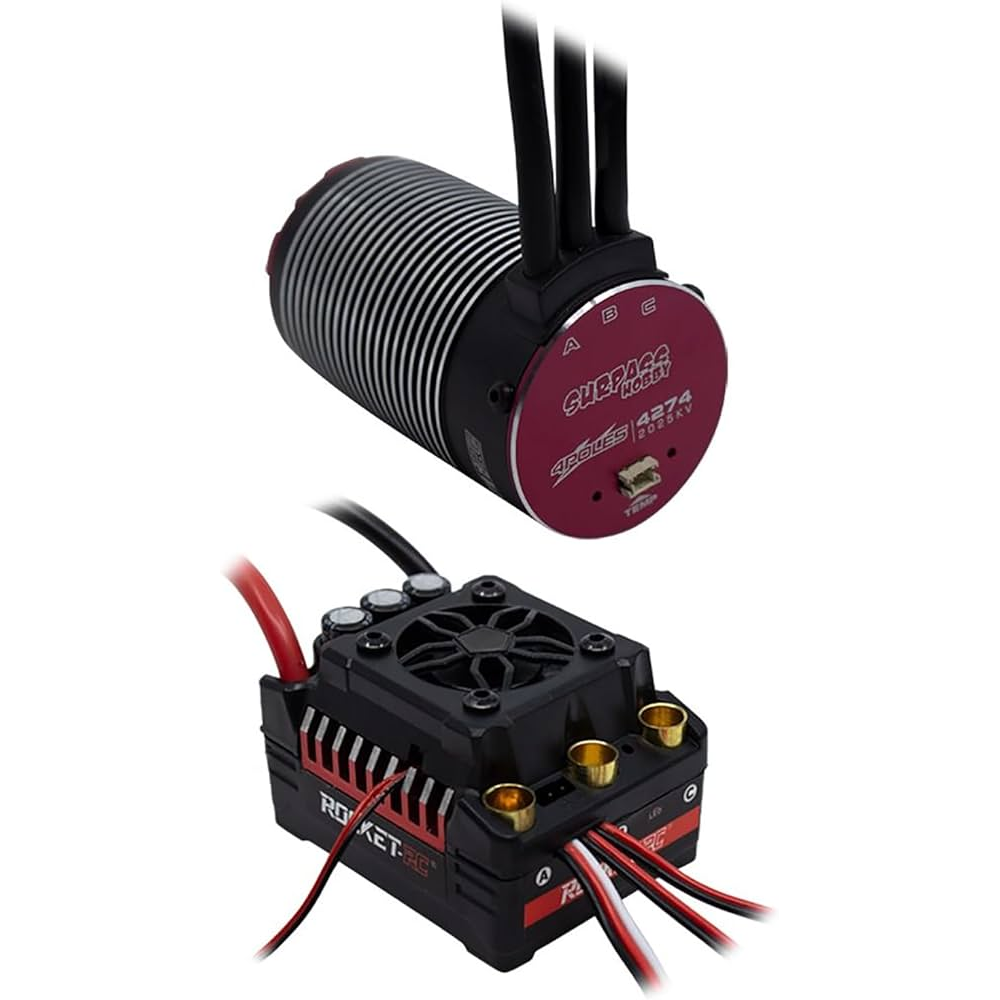

COMBO SURPASS V2 4274 1850KV+ 160A ESC

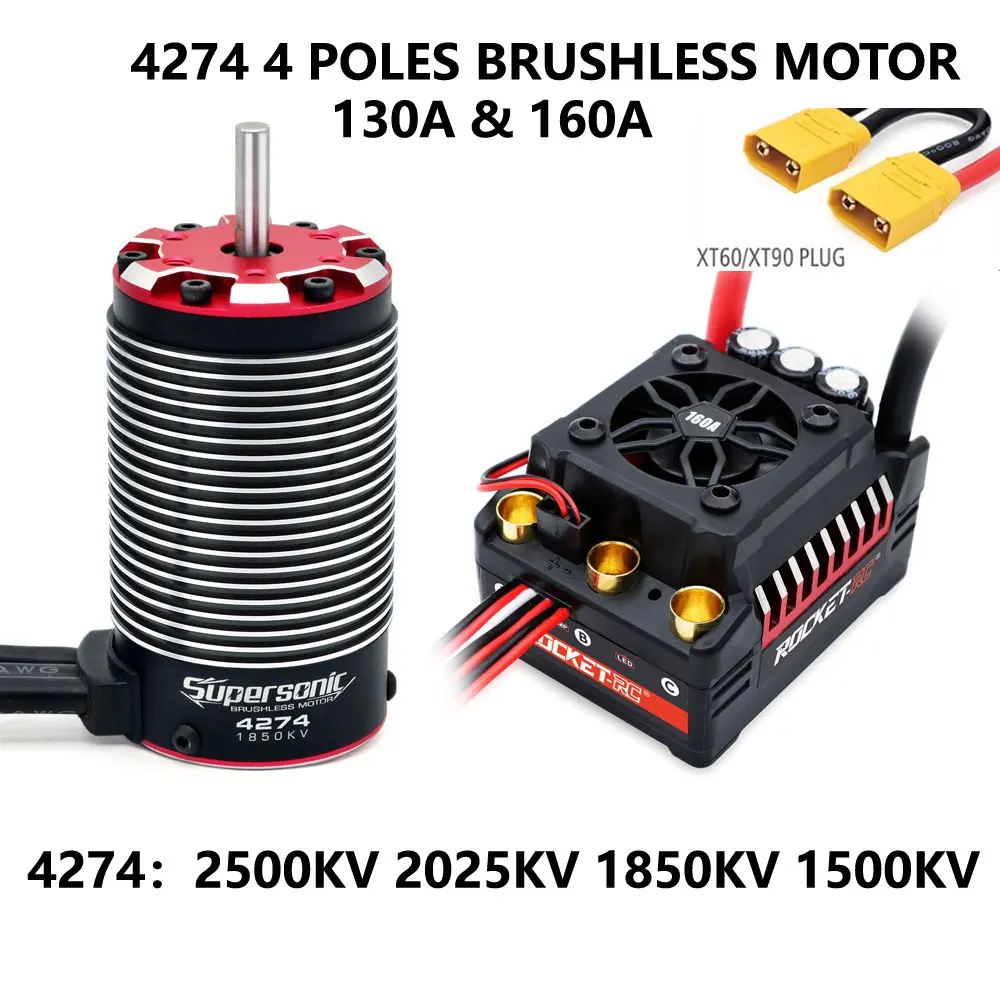

SURPASSHOBBY SUPERSONIC V2 Brushless Motor 4274 2500KV 2025KV 1850KV and 130A/160A ESC Combo for 1/8 1/7 RC Car RC Parts

SURPASSHOBBY SUPERSONIC V2 4274 2500KV 2050KV 1850KV 4 Poles Brushless Motor and 130A/160A ESC Combo for 1/8 1/7 RC Car RC Parts

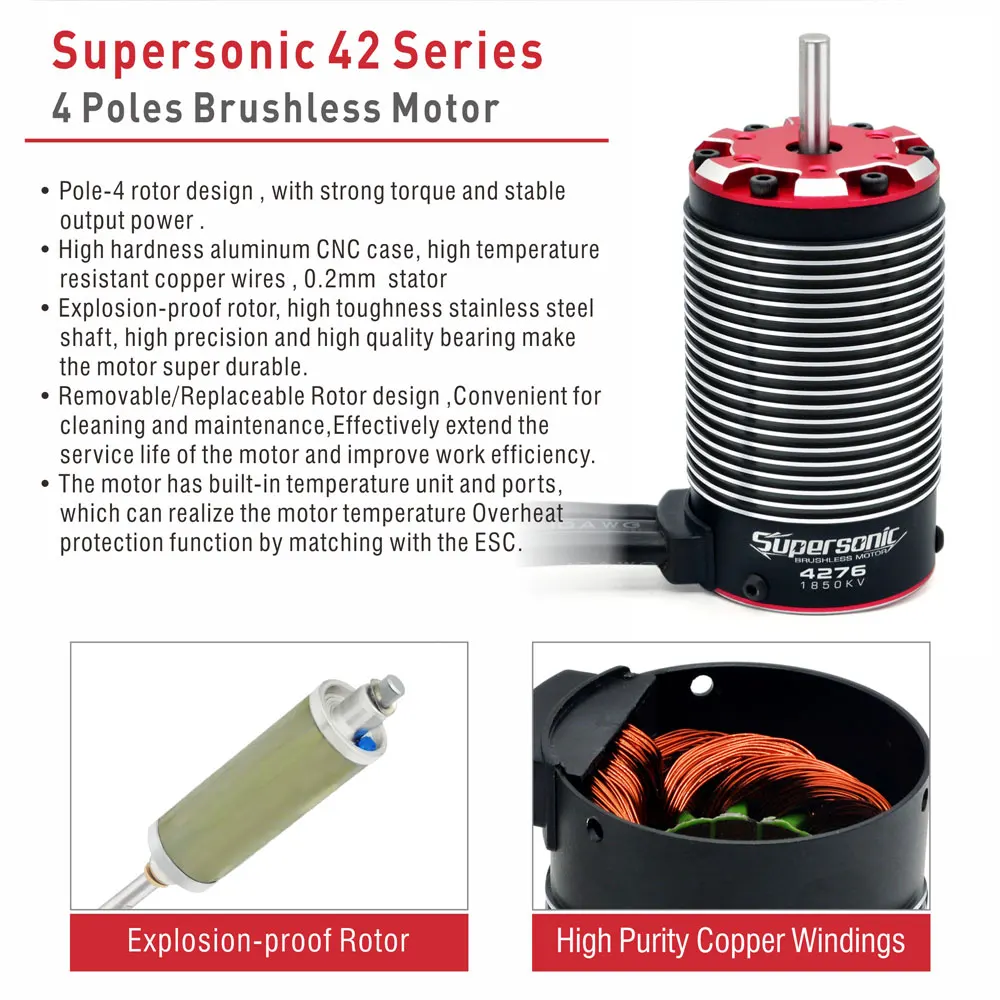

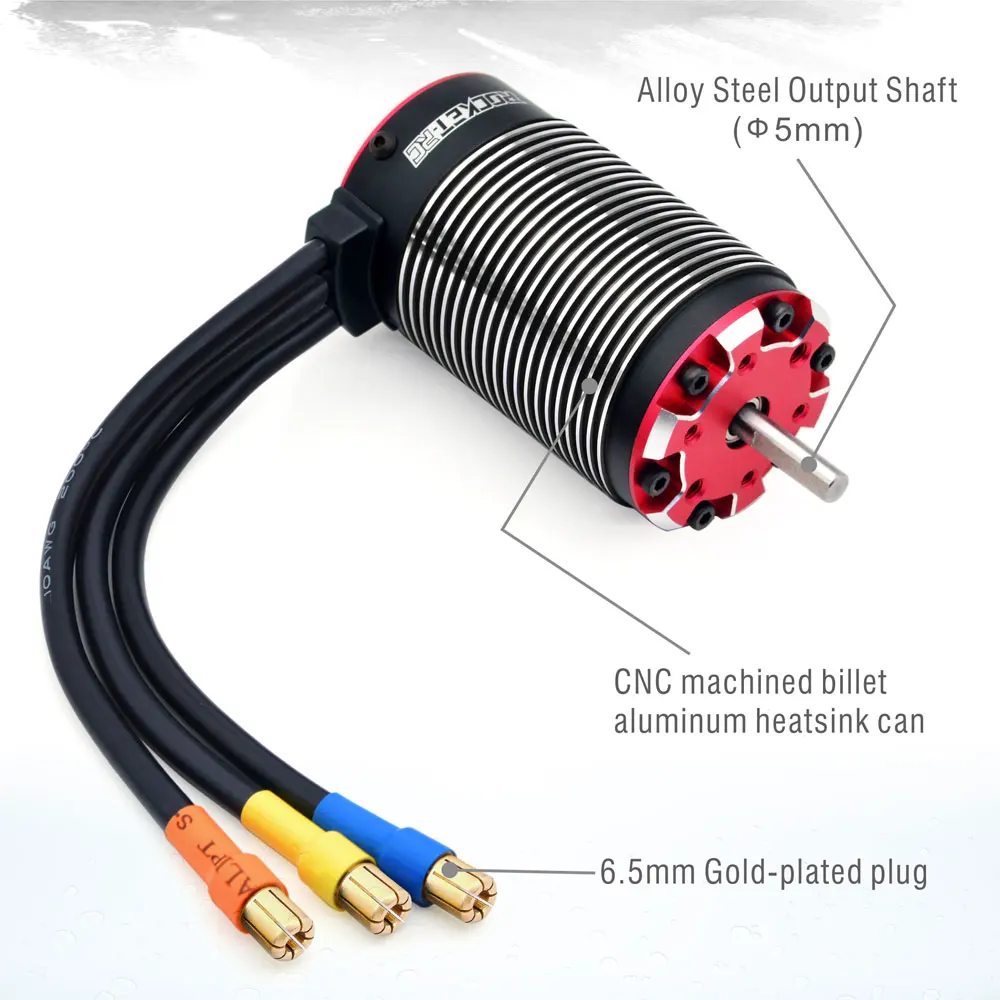

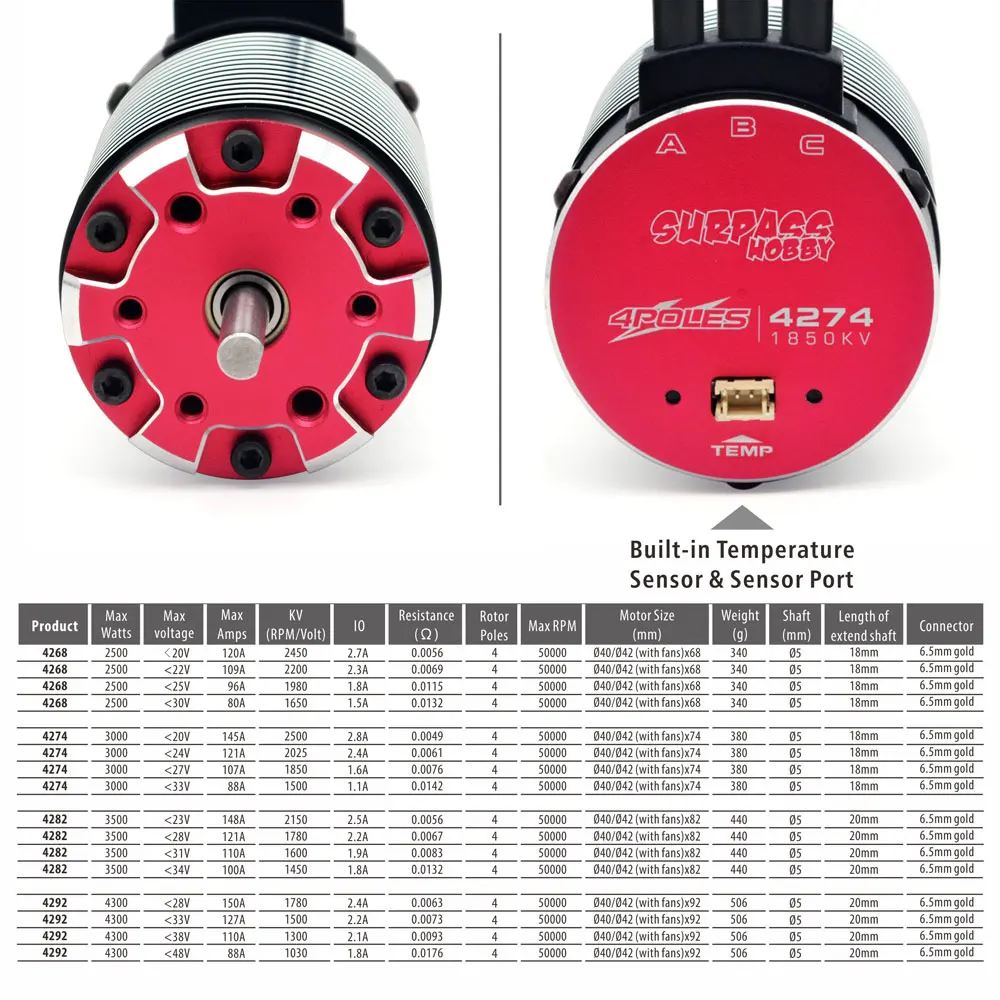

4274 Supersonic Brushless Motor

Watt: 2800

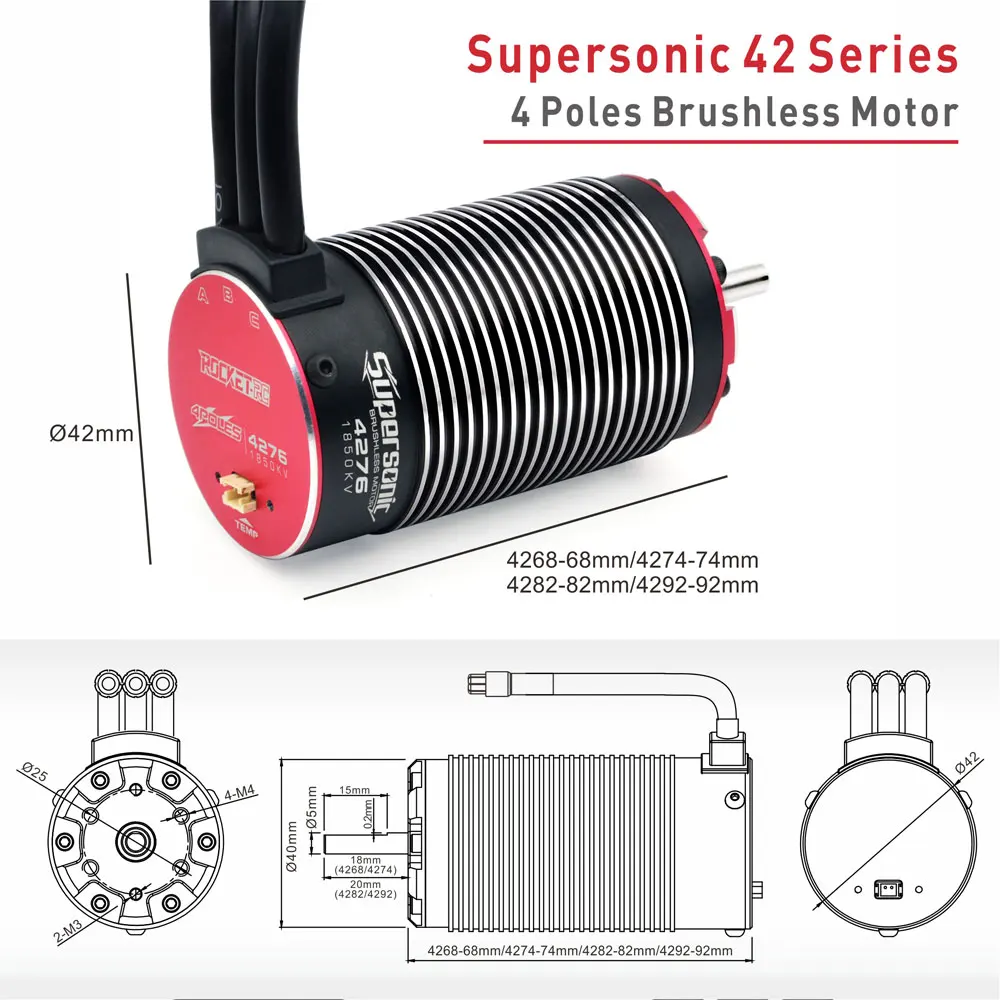

Motor Size(mm): ∅ 40 / ∅ 42 ( with fans ) x74

Weight: 380

Length of extend shaft: 18mm

KV(RPM/Volt): 2500KV

Max voltage: <20V

Max amps: 140A

IO: 2.8A

Resistance: 0.0049

KV(RPM/Volt):2025KV

Max voltage: <25V

Max amps: 112A

IO: 2.4A

Resistance: 0.0061

KV(RPM/Volt): 1850KV

Max voltage: <26V

Max amps: 108A

IO: 1.6A

Resistance: 0.0076

KV(RPM/Volt): 1500KV

Max voltage: <30V

Max amps: 92A

IO: 1.1A

Resistance: 0.0142

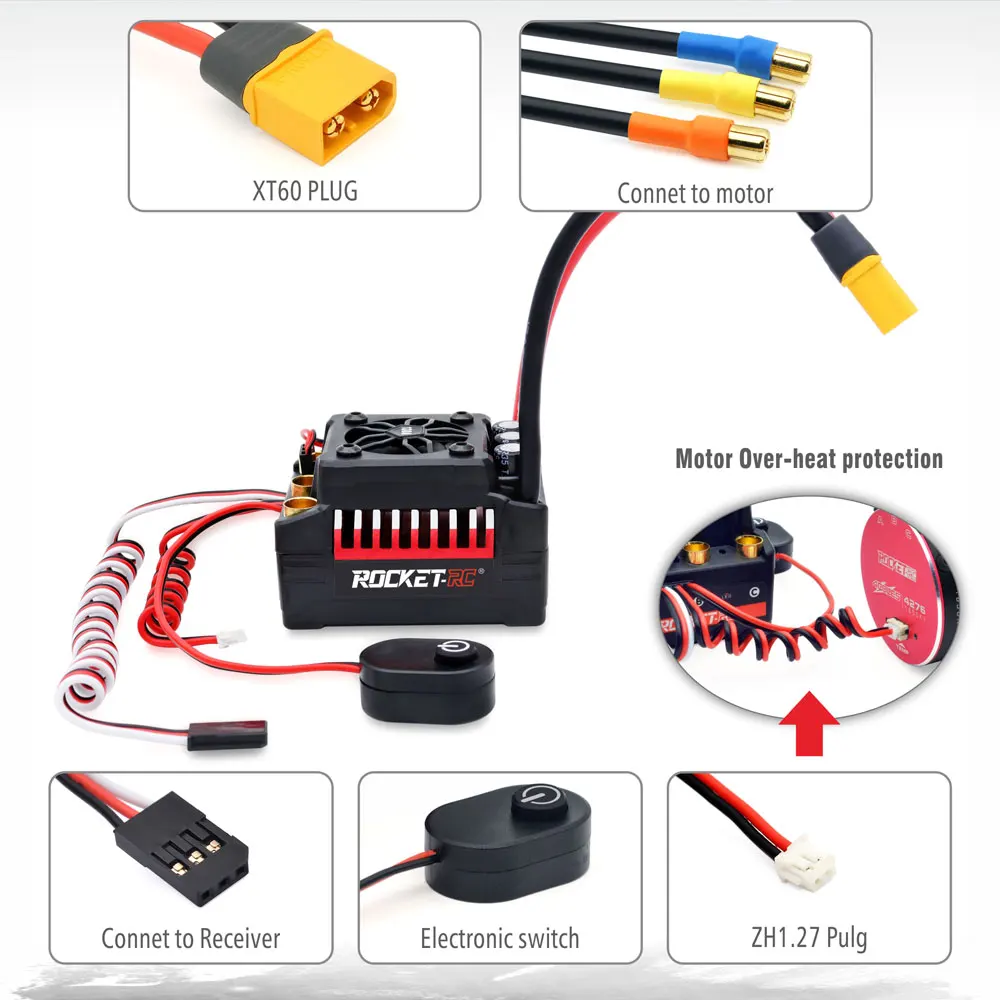

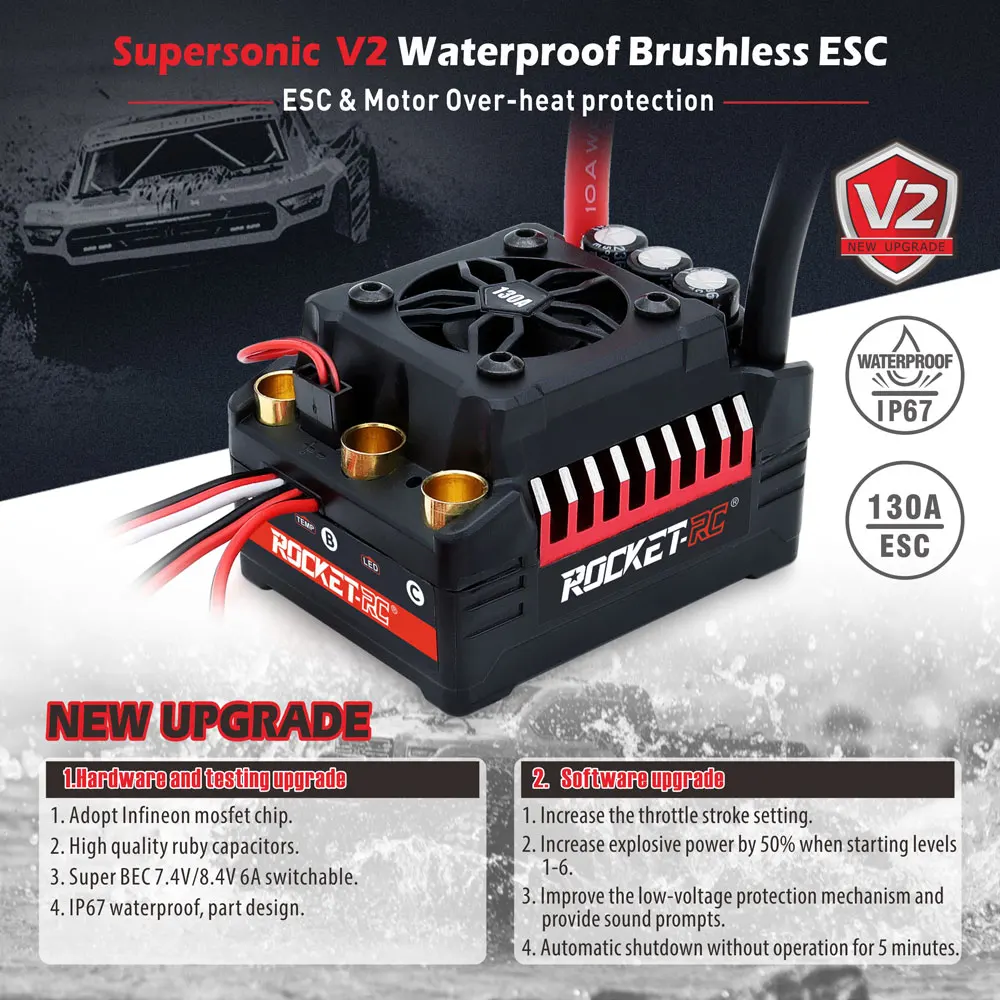

Surpass Hobby Rocket-RC 130A Brushless ESC 160A 4S Supersonic for 1/7 1/8 RC Car Buggy

 Feature:

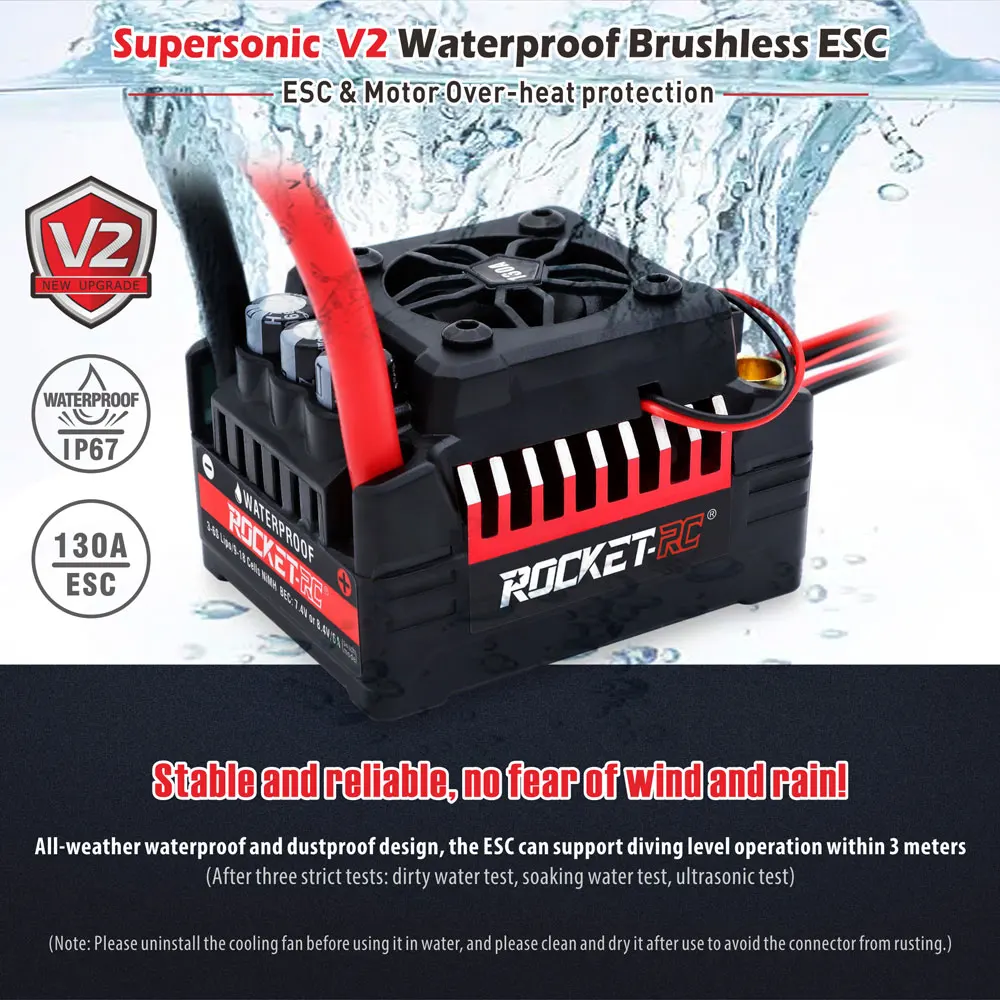

1. RC Car ESC: Electronic Speed Controller application for 1/8 &1/7 RC car buggy truck.Water-proof and dust-proof for all-weather races(Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

2. RC ESC: Specially designed for RC car with excellent start-up, acceleration and linearity features.The strong resistant current capability, excellent heat dissipation.Easily programmed and compatible with pocket-sized program card

3. 160A 130A Brushless ESC: Built-in switch-mode BEC 6.1V or 7 4V/5A for usage with high torque and high voltage servos.Compatible with Supersonic V2 sensorless brushless motor 4276 4268 4274 4282 4292

4. Multiple Protection ESC: Low voltage cut-off protection for lithium or nickel battery /ESC Over-heat protection / Motor Over-heat protection/ Throttle signal loss protection/ Motor blocked protection

5.4s ESC: For 4S Lipo or 12 cells NIMH :

1 . On-road : 40xx-size or smaller motor with the KV < 3000

2 . Off-road / Buggy / Monster : 40xx-size or smaller motor with the KV < 2500

For 6S Lipo or 18 cells NIMH :

1 . On-road : 40xx-size or smaller motor with the KV < 2500

2 . Off-road / Buggy / Monster : 40xx-size or smaller motor with the KV < 2000Battery 3~6 cells Lipo / 9~18 cells NiMH

Description:

Rocket-RC Supersonic 130A 160A Brushless ESC application for 1/8 car &1/7 car.Water-proof and dust-proof for all-weather races.Compatible with Supersonic V2 sensorless brushless motor

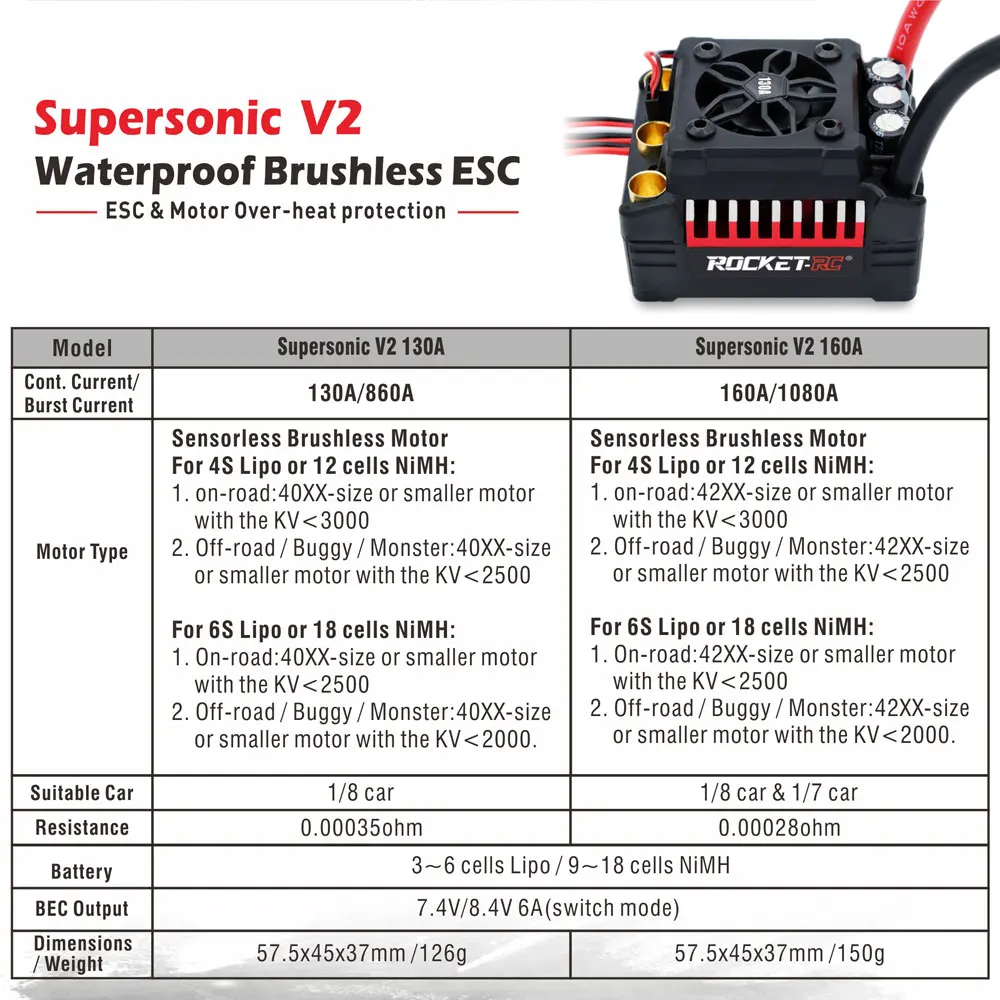

Model: Supersonic 130A

Cont.Current / Burst Current: 130A/860A

Motor Type: Sensorless Brushless Motor

For 4S Lipo or 12 cells NIMH :

1 . on-road : 40xx-size or smaller motor with the KV < 3000

2 . Off-road / Buggy / Monster : 40xx-size or smaller motor with the KV < 2500

For 6S Lipo or 18 cells NIMH :

1 . On-road : 40xx-size or smaller motor with the KV < 2500

2 . Off-road / Buggy / Monster : 40xx-size or smaller motor with the KV < 2000

Suitable Car: 1/8 car

Resistance:0.00035ohm

Battery: 3~6 cells Lipo / 9~18 cells NiMH

Battery Plug: XT60

BEC Output:6.1V/5A or 7.4V /5A (switch mode)

Dimensions/Weight: 57.5x45x37mm/132g

Model:Supersonic 160A

Cont.Current / Burst Current:160A/1080A

Motor Type: Sensorless Brushless Motor

For 4S Lipo or 12 cells NIMH:

1 . On-road: 42xx-size or smaller motor with the KV < 3000

2 . Off-road / Buggy / Monster: 42xx-size or smaller motor with the KV < 2500

For 6S Lipo or 18 cells NIMH:

1 . On-road: 42xx-size or smaller motor with the KV < 2500

2 . Off-road / Buggy / Monster: 42xx-size or smaller motor with the KV < 2000

Suitable Car: 1/8 car &1/7 car

Resistance: 0.00028ohm

Battery: 3~6 cells Lipo / 9~18 cells NiMH

BEC Output: 6.1V/5A or 7.4V /5A (switch mode)

Dimensions/Weight: 57.5x45x37mm/140g
