CNHL Lightning LiHV 4S 4000mAh 15.2V120C XT90

Product Specifications

Capacity 4000mAh

Voltage 15.2V / 4S LiHV

Discharge Rate 120C Continuous / 240C Burst

Output Connector XT90 Plug

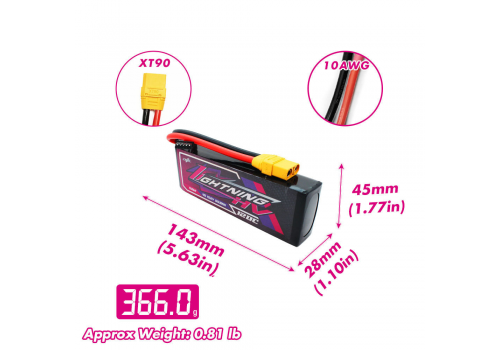

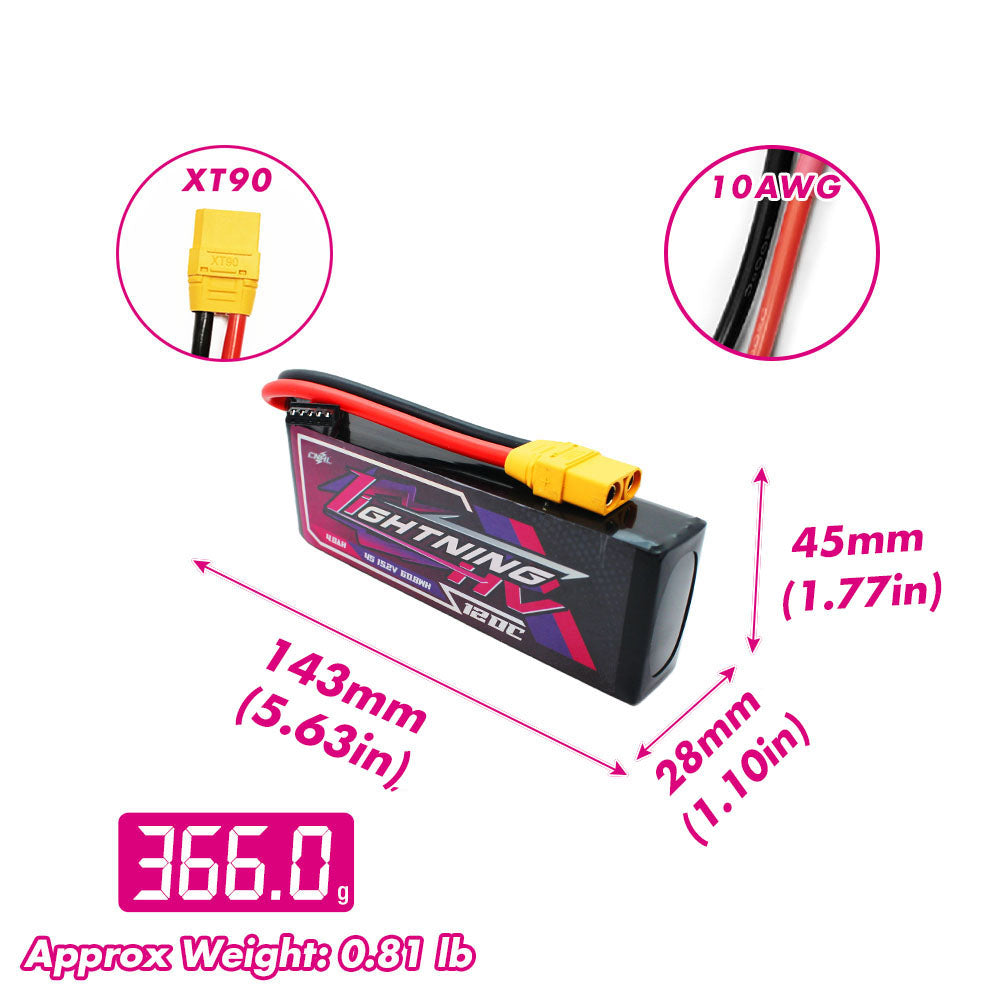

Dimensions (L×W×H) 143 × 45 × 28 mm

Weight Approx. 366 g

Charge Rate 5C Max

Balance Connector JST-XHP-5P

Wire Gauge 10 AWG

Stock Number HV4001204XT90

Product Overview

The CNHL Lightning LiHV 4000mAh 4S 120C LiPo Battery with XT90 Plug is built for RC pilots who want strong throttle response and stable voltage without stepping up to a heavier high-capacity pack.

Because this battery uses LiHV chemistry, it can be charged to a higher voltage than standard LiPo packs. In practice this usually gives a slightly stronger initial throttle feel and more energetic takeoffs.

With a 120C discharge rating, the pack is capable of supporting demanding aircraft setups where quick throttle changes and consistent power delivery matter.

Typical Applications

1.2m – 1.5m RC airplanes

Sport and scale warbirds

Medium-size EDF jets

FPV fixed-wing platforms

Compatible RC Models

This battery is commonly used in RC aircraft that require a reliable 4S power setup, including models such as:

FMS 1400mm T-28 Trojan

AtomRC Swordfish

Eflite SNJ-5 / AT-6 Texan 1.5m

For a full list of recommended battery options for the Texan platform, see our collection:

Eflite SNJ-5 / AT-6 Texan 1.5m Recommended Batteries
