CNHL Lightning LiHV 4S 4500mAh 15.2V 120C XT90

Product Specifications

Capacity 4500mAh

Voltage 15.2V / 4S LiHV

Discharge Rate 120C Continuous / 240C Burst

Output Connector XT90 Plug

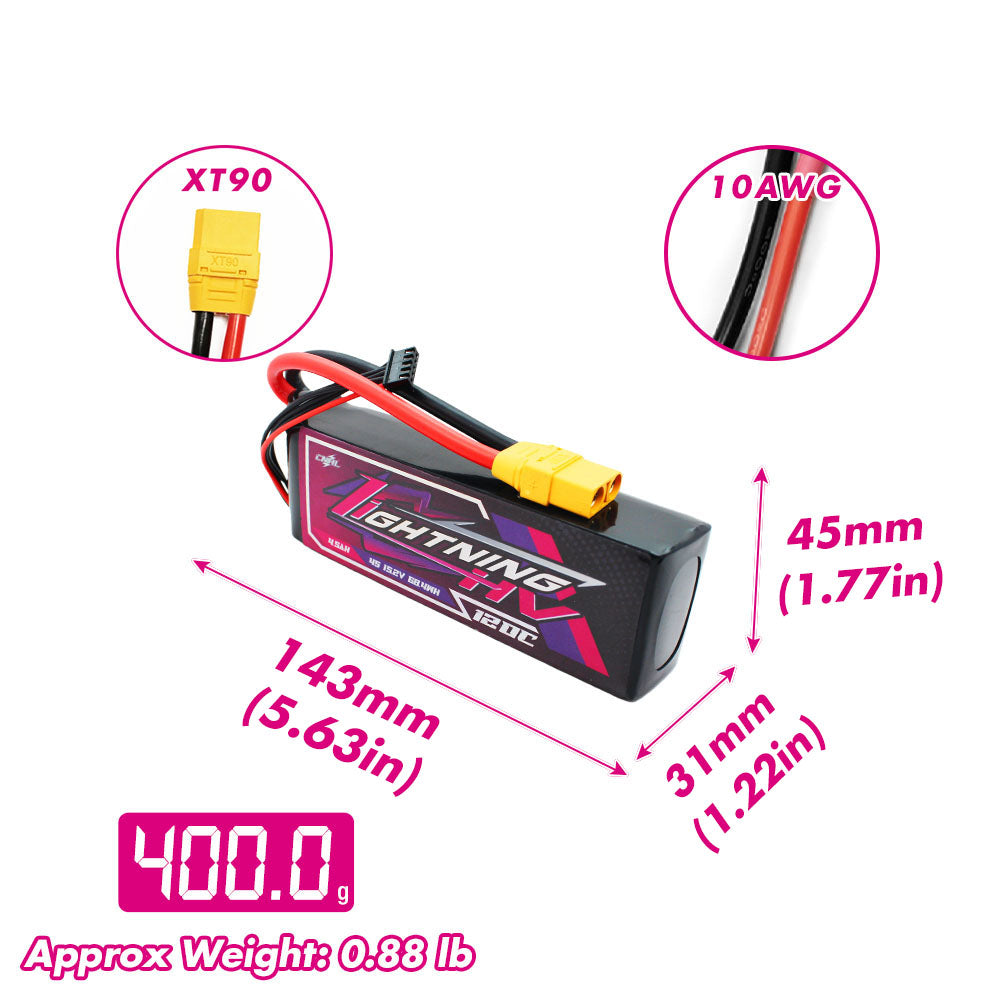

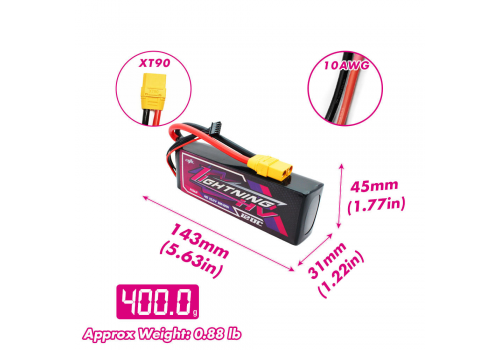

Dimensions (L×W×H) 143 × 45 × 31 mm

Weight Approx. 400 g

Charge Rate 5C Max

Balance Connector JST-XHP-5P

Wire Gauge 10 AWG

Stock Number HV4501204XT90

Product Overview

The CNHL Lightning LiHV 4500mAh 15.2V 4S 120C LiPo Battery with XT90 Plug is part of the CNHL Lightning LiHV series, designed for RC pilots who need strong burst current and stable voltage during demanding flight or driving conditions.

Because it uses LiHV cell chemistry, the battery charges to a higher voltage than standard LiPo packs. In real-world use this often translates into stronger throttle response, improved punch, and more energetic early-pack performance.

The 120C discharge capability allows this pack to handle aggressive throttle inputs while maintaining stable voltage output throughout the run.

Typical Applications

4S RC airplanes (1.2m – 1.5m wingspan)

Sport and scale RC aircraft

RC boats using 4S power systems

High-performance RC vehicles requiring XT90 batteries

Compatible RC Models

This battery is commonly considered for models such as:

E-flite Habu SS

Turbo Timber SWS

Ultra Stick
