CNHL Lightning LiHV 4S 750mAh 15.2V 120C XT30

Product Specifications

Capacity 750mAh

Voltage 15.2V / 4S / 4S1P LiHV

Discharge Rate 120C Continuous / 240C Burst

Output Connector XT30 Plug

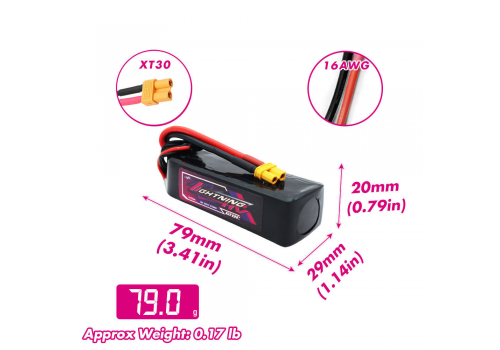

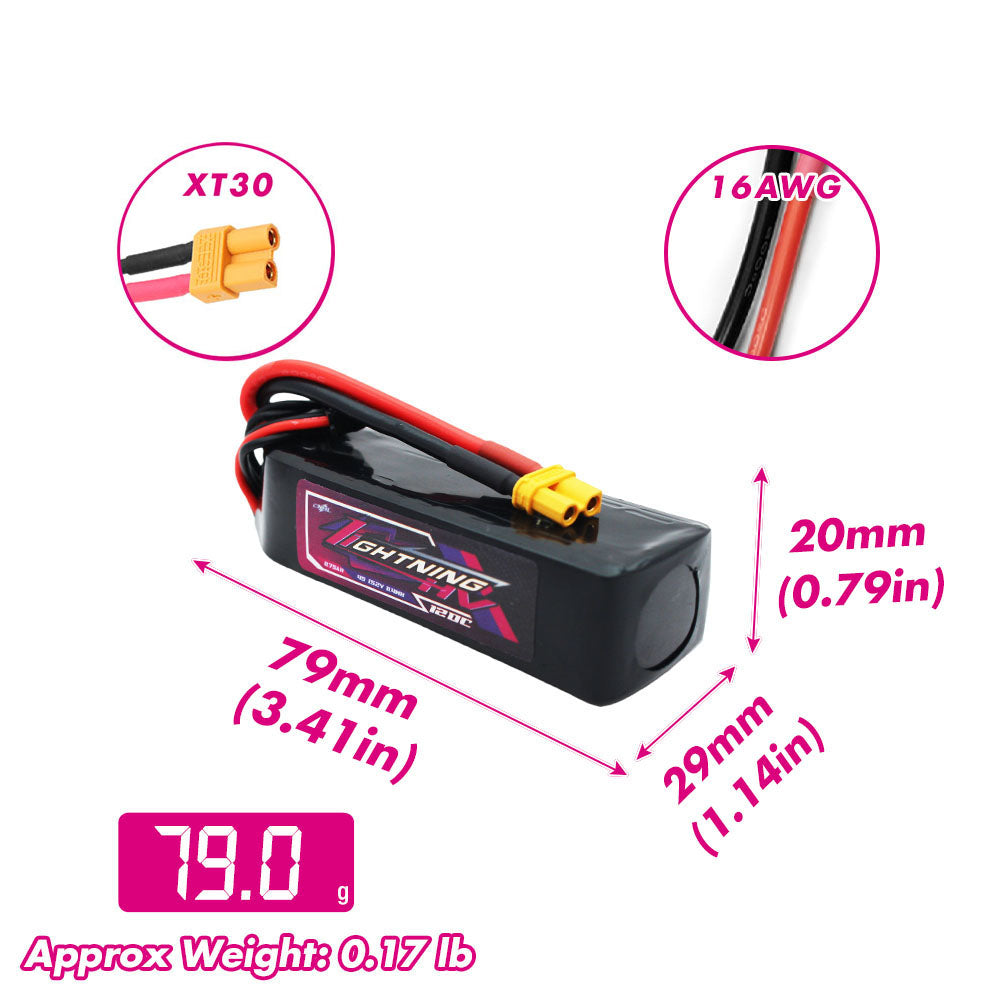

Dimensions (L×W×H) 79 × 20 × 29 mm (±1–5 mm)

Weight Approx. 79 g (±5 g)

Charge Rate 5C Max

Balance Connector JST-XHP-5P

Wire Gauge 16 AWG

Stock Number HV751204

Product Overview

CNHL Lightning LiHV 750mAh 15.2V 4S 120C LiPo Battery with XT30 Plug is designed for compact FPV drones that need sharp throttle response, fast recovery after punch-outs, and stronger voltage stability than a softer everyday pack. For many pilots, this is the kind of battery that makes a small quad feel more awake the moment it leaves the ground.

The 750mAh size sits in an interesting spot. It is still compact enough for many 2.5-inch to 3-inch XT30 builds, but it carries more authority than smaller 450mAh or 550mAh packs. That makes it appealing for pilots who want a bit more usable flight time while still keeping the quad agile and responsive.

Because this is a LiHV 4S battery, it charges to a higher full voltage than a standard LiPo pack. In real flying, that usually shows up as a more energetic top end, a cleaner burst of acceleration, and less “flat” feeling early in the pack. On builds where throttle precision matters, that extra liveliness can be noticeable.

The 120C continuous discharge rating also fits the purpose well. Whether the quad is carrying a light HD setup, making repeated altitude corrections, or transitioning quickly through tight lines, the pack is built to deliver current fast enough to keep the response crisp instead of lazy.

Typical Applications

4S XT30 FPV drones

2.5-inch to 3-inch cinewhoops

Compact freestyle builds that need strong punch in a small battery format

Micro FPV drones where LiHV voltage helps improve throttle feel

Indoor and outdoor cinematic flying that benefits from quick throttle recovery

Compatible Models

This battery is commonly considered for compact 4S XT30 FPV drones such as:

GEPRC CineLog series

GEPRC CineLog 30

GEPRC Cinebot25 V2 O4 Pro

Other 4S cinewhoops and performance-oriented micro freestyle builds using an XT30 connector

As always, please confirm voltage, connector type, battery tray length, available strap clearance, and target flying weight before ordering. Even when two builds both use 4S XT30, they may not want the same battery dimensions or overall weight.
